Bravo Laser Rotativo Incligrad
SKU: 61345
- Automatic laser level with visible rotating red beam: generates a horizontal, vertical or inclined plane that can be adjusted by ± 10% in X and Y direction and two plomb lines

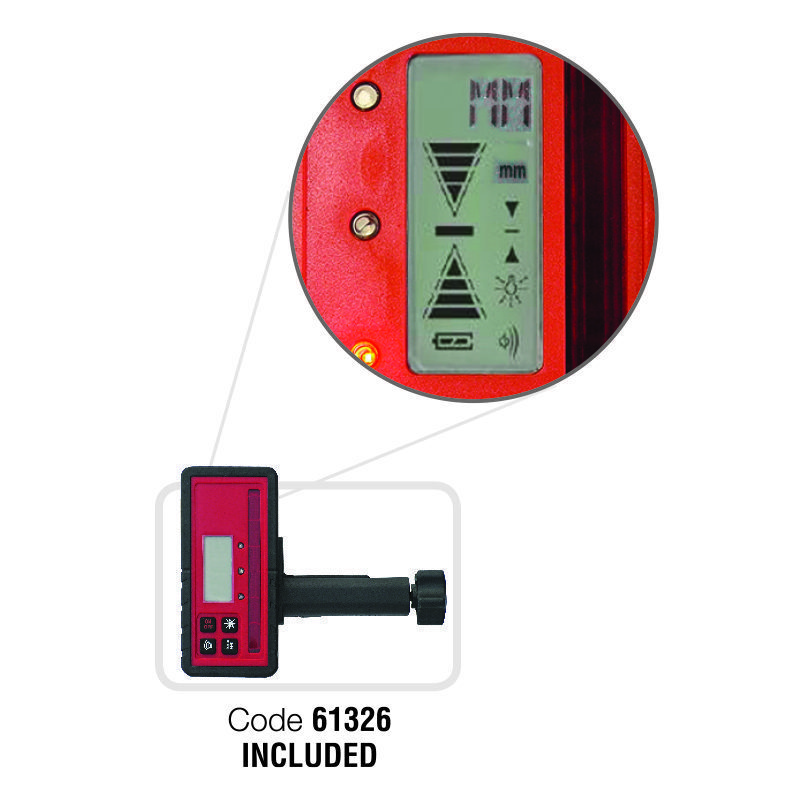

- High-sensitivity receiver with deviation indication in mm
- Metal cover
- Adjustment of the inclined plane shown on the display
- By rotating the unit 90°, the unit generates a vertical self-leveled laser plane and two horizontal beams
- SCANNER: 10° - 45° - 90° - 90° - 180°
- TILT function: In case of unintentional movement the device switches off the laser beam.
- Step-by-step rotation function
- MANUAL function which excludes automatic levelling
- Remote control reception on the 4 sides of the unit for adjusting the X and Y axis inclinations

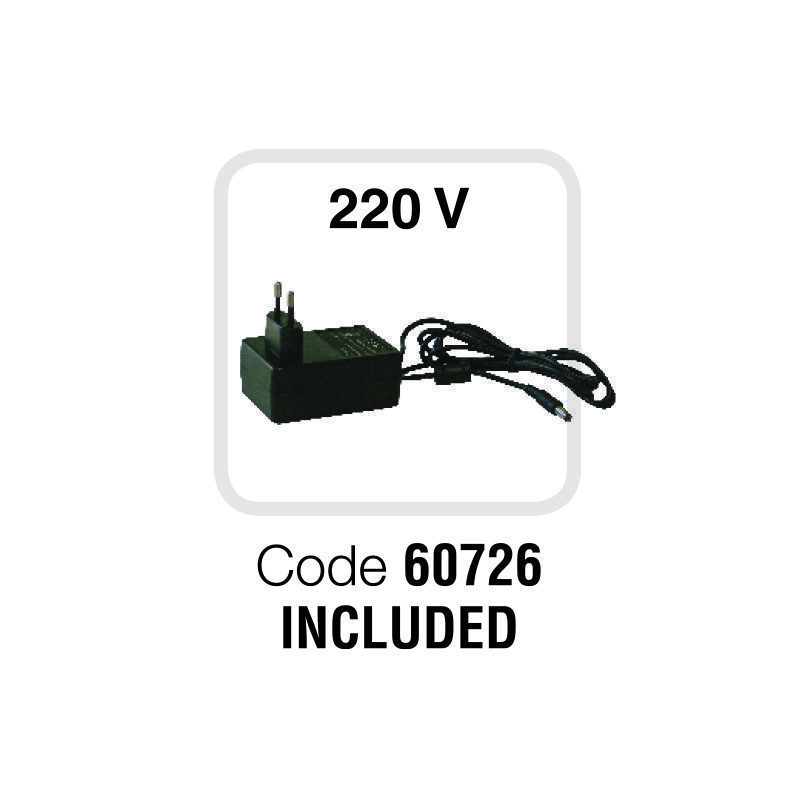

- Rechargeable batteries and charger included or alternatively 4 alkaline batteries 1.5 V LR14
- Battery charge indicator

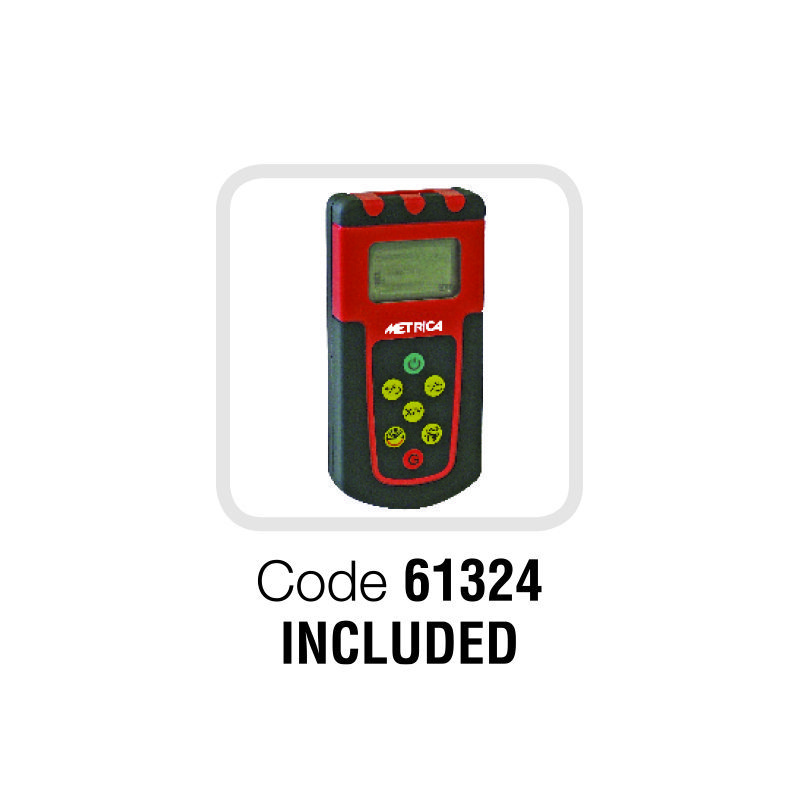

- Radio remote control
|
|
|
|---|---|---|
|
|
|
|
| 61345 | 8001066613458 | 1 |
| Leveling accuracy | Horizontal ± 3 mm / 30 m Vertical ± 5 mm / 30 m |
| Self-leveling range | ± 5° |
| Slope setting range | ± 10% |
| Leveling system | Fast electronic sensor |
| Operating time | ~ 40 hours |
| Working range | 500 m Ø (with receiver), depending on climatic conditions |
| Rotational speeds | 0 - 60 - 120 - 300 - 600 rpm |
| Scanner function | 10° - 45° - 90° - 180° |
| Tilt function | Yes |
| Out-of-level alarm | Yes |
| Laser type | 635 nm |
| Laser class | Class II |
| Rechargeable batteries | 4 x C4000 Li-Ion |
| Dimensions (mm) | 220 x 220 x 210 |
| Weight (without batteries) | 3.5 kg |
| Operating temperature | -10 °C / +50 °C |
| Protection rating | IP 54 |
| Tripod thread | 5/8” |
| Remote control range | ~ 50 m |
| Remote control batteries | 2 x 1.5 V DC |
| Receiver battery | 9 V DC |
